:: 8 WATT MEDICAL APPROVED :: UE08WCP-SPA

Universal AC Input
Choice of AC PLugs (Multi - Head)
8 WATT
MEDICAL APPROVED EN60601 / UL60601

3VDC - 18VDC Single Output Voltages
ENERGY STAR Level V (V2.0)
Low Standby Power 0.3W Max

 Click to Download Datasheet

17 variants of this product.

UE08WCP-033200SPA



UE08WCP-042190SPA



UE08WCP-050160SPA



UE08WCP-055145SPA



UE08WCP-060133SPA



UE08WCP-065123SPA



UE08WCP-070133SPA



UE08WCP-075105SPA



UE08WCP-080100SPA



UE08WCP-085094SPA



UE08WCP-090088SPA



UE08WCP-105076SPA



UE08WCP-120066SPA



UE08WCP-125064SPA



UE08WCP-138057SPA



UE08WCP-150053SPA



UE08WCP-180044SPA



:: 15 Watt Plug Top PSU :: UE15WCP-030YYYSPA

FOR NEW PROJECTS, WE RECOMMEND UE15WCP1-SERIES AS BELOW AS MEETS ENERGY STAR LEVEL 5.

This plug top Power Supplies has interchangeable AC Main Plug for world wide use, operating from a universal I/P and supplying at O/P voltage from 3Vdc to 24Vdc.

Having obtained full safety approvals.

Low standby power just 0.3W

 Click to Download Datasheet

24 variants of this product.

UE15WCP-033YYYSPA
I/P 100-240Vac, O/P 3.30VDC at 0.10-2.00A



UE15WCP-036YYYSPA
I/P 100-240Vac, O/P 3.60VDC at 0.10-2.00A



UE15WCP-040YYYSPA
I/P 100-240Vac, O/P 4.00VDC at 0.10-2.00A



UE15WCP-042YYYSPA
I/P 100-240Vac, O/P 4.20VDC at 0.10-2.00A



UE15WCP-045YYYSPA
I/P 100-240Vac, O/P 4.50VDC at 0.10-2.00A



UE15WCP-050YYYSPA
I/P 100-240Vac, O/P 5.00VDC at 0.10-2.00A



UE15WCP-052YYYSPA
I/P 100-240Vac, O/P 5.20VDC at 0.10-2.00A



UE15WCP-055YYYSPA
I/P 100-240Vac, O/P 5.50VDC at 0.10-2.00A



UE15WCP-060YYYSPA
I/P 100-240Vac, O/P 6.00VDC at 0.10-2.00A



UE15WCP-065YYYSPA
I/P 100-240Vac, O/P 6.50VDC at 0.10-2.00A



UE15WCP-070YYYSPA
I/P 100-240Vac, O/P 7.00VDC at 0.10-1.70A



UE15WCP-075YYYSPA
I/P 100-240Vac, O/P 7.50VDC at 0.10-1.50A



UE15WCP-080YYYSPA
I/P 100-240Vac, O/P 8.00VDC at 0.10-1.50A



UE15WCP-085YYYSPA
I/P 100-240Vac, O/P 8.50VDC at 0.10-1.40A



UE15WCP-090YYYSPA
I/P 100-240Vac, O/P 9.00VDC at 0.10-1.30A



UE15WCP-100YYYSPA
I/P 100-240Vac, O/P 10.0VDC at 0.10-1.25A



UE15WCP-105YYYSPA
I/P 100-240Vac, O/P 10.5VDC at 0.10-1.25A



UE15WCP-120YYYSPA
I/P 100-240Vac, O/P 12.0VDC at 0.10-1.25A



UE15WCP-138YYYSPA
I/P 100-240Vac, O/P 13.8VDC at 0.10-1.00A



UE15WCP-150YYYSPA
I/P 100-240Vac, O/P 15.0VDC at 0.10-0.90A



UE15WCP-160YYYSPA
I/P 100-240Vac, O/P 16.0VDC at 0.10-0.85A



UE15WCP-175YYYSPA
I/P 100-240Vac, O/P 17.5VDC at 0.10-0.80A



UE15WCP-180YYYSPA
I/P 100-240Vac, O/P 18.0VDC at 0.10-0.80A



UE15WCP-240YYYSPA
I/P 100-240Vac, O/P 24.0VDC at 0.10-0.63A



:: 15 WATT MEDICAL APPROVED :: UE15WCP1-030200SPA

Medical Approved 15Watt Plug Top Psu, with interchangeable AC Plugs Energy Start Level 5, EN60601, UL60601

Avilable with O/P from 3V to 24V

TUV-GS ITE EN60950
cULus (ITE UL60950 & Medical UL60601)
CE Mark, PSE-JET, C-Tick
CCC (ITE GB4943, Medical En60601,
LED EN61347, Medical AS/

 Click to Download Datasheet

25 variants of this product.

UE15WCP1-033200SPA



UE15WCP1-036200SPA



UE15WCP1-040200SPA



UE15WCP1-045200SPA



UE15WCP1-050200SPA



UE15WCP1-055200SPA



UE15WCP1-060200SPA



UE15WCP1-065200SPA



UE15WCP1-070170SPA



UE15WCP1-075150SPA



UE15WCP1-080150SPA



UE15WCP1-085140SPA



UE15WCP1-090140SPA



UE15WCP1-100140SPA



UE15WCP1-105130SPA



UE15WCP1-120125SPA



UE15WCP1-138105SPA



UE15WCP1-150100SPA



UE15WCP1-160085SPA



UE15WCP1-175080SPA



UE15WCP1-190074SPA



UE15WCP1-200074SPA



UE15WCP1-220065SPA



UE15WCP1-230065SPA



UE15WCP1-240063SPA



:: 24Watt AC Multi Head Adapter :: UE24WZ-SPA

24 WATT Medical Approved
Plug-in style adapter

3V - 24VDC Output Voltages
Universal AC Input, with choice of AC Plugs suitable for various countries
Low Standby Power 0.5W
Low Leakage 10uA Max, no Y Cap
cCSAus (CSA601) and EN60601 Medical

 Click to Download Datasheet

29 variants of this product.

UE24WZ-030250SPA



UE24WZ-033250SPA



UE24WZ-040250SPA



UE24WZ-045250SPA



UE24WZ-048250SPA



UE24WZ-050250SPA



UE24WZ-052250SPA



UE24WZ-055250SPA



UE24WZ-060250SPA



UE24WZ-065250SPA



UE24WZ-070250SPA



UE24WZ-075250SPA



UE24WZ-080250SPA



UE24WZ-085250SPA



UE24WZ-098220SPA



UE24WZ-100220SPA



UE24WZ-105200SPA



UE24WZ-120200SPA



UE24WZ-126190SPA



UE24WZ-130185SPA



UE24WZ-138175SPA



UE24WZ-150160SPA



UE24WZ-160150SPA



UE24WZ-165145SPA



UE24WZ-180133SPA



UE24WZ-200120SPA



UE24WZ-220109SPA



UE24WZ-230104SPA



UE24WZ-240100SPA



:: 15 Watt Medical Approved Desk Top Adaptor :: UE15-030200SPA4

THIS SERIES IS NOW DISCONTINUED PLEASE CONTACT SALES



 Click to Download Datasheet

17 variants of this product.

UE15-030200SPA4
THIS SERIES IS NOW DISCONTINUED PLEASE CONTACT SALES



UE15-033200SPA4
I/P 100-240Vac, O/P 3.3VDC at 2.00A



UE15-036200SPA4
I/P 100-240Vac, O/P 3.6VDC aT 2.00A



UE15-045200SPA4
I/P 100-240Vac, O/P 4.5VDC at 2.00A



UE15-048200SPA4
I/P 100-240Vac, O/P 4.8VDC at 2.00A



UE15-050200SPA4
I/P 100-240Vac, O/P 5.0VDC at 2.00A



UE15-055200SPA4
I/P 100-240Vac, O/P 5.5VDC at 2.00A



UE15-060200SPA4
I/P 100-240Vac, O/P 6.0VDC at 2.00A



UE15-065200SPA4
I/P 100-240Vac, O/P 6.5VDC at 2.00A



UE15-075180SPA4
I/P 100-240Vac, O/P 7.5VDC at 1.80A



UE15-080150SPA4
I/P 100-240Vac, O/P 8.0VDC at 1.50A



UE15-085150SPA4
I/P 100-240Vac, O/P 8.5VDC at 1.50A



UE15-090150SPA4
I/P 100-240Vac, O/P 9.0VDC at 1.50A



UE15-105130SPA4
I/P 100-240Vac, O/P 10.5VDC at 1.30A



UE15-135100SPA4
I/P 100-240Vac, O/P 13.5VDC at 1.00A



UE15-138100SPA4
I/P 100-240Vac, O/P 13.8VDC at 1.00A



UE15-150080SPA4
I/P 100-240Vac, O/P 15VDC at 0.80A



:: HES22 22-24W Desk Top PSU :: HES22

Medical Approved Desk Top PSU
22W - 24W O/P Power
Several O/P Voltages available

Universal AC Input
Desk Top IEC 320
Medical Approval EN60601 / UL2601
CE Marking Compliance

 Click to Download Datasheet

:: HES49 45-50W Desk Top PSU :: HES49

Medical Approved 45-50 Watt Desk Top PSU

Universal AC Input
IEC320
EN60601 / UL2601 Approval
EMI - EN55022 / FCC Class B
CE Marking Compliance

 Click to Download Datasheet

:: 60W Medical Approved Desk Top :: 2020

Desk Top Power Supply - Medical Approval up to a Max 60W

Universal AC Input
High efficiency
Compact design
Medical Approval
*Mounting Bracket Available
Exchangeable Output Plug
EN60601

 Click to Download Datasheet

:: 45 Watt Medical Open Frame Psu :: MPS/MPD/MPT

45 Watt Open Frame Medical Psu single, Dual and Tripple O/P

Medical Approved 45Watt Open Frame Psu from 3.3VDC to 48VDC.

Full International approvals
Low earth leakage
4KVA isolation



 Click to Download Datasheet

:: Open Frame, 1-4 Output - 120W-200W MEDICAL Series :: MPS/MPD/MPT/MPQ

PDS now offer a MEDICAL approved Open Frame power supply offering Single/Dual/Triple and Quad Outputs.

Universal AC Input / Full range.
Low Leakage Current.
Protections:Short Circuit/OL/OV & Temp.
Free Air Convection 140W (200W model) or 200W with forced air.
UL2601-1 Medical Safety Approval.
With Power Good and Fail signal output.
Built-in Remote ON-OFF Control.
Built In remote sense function.
3 Years Warranty.
Full PDF for every model available.


 Click to Download Datasheet

:: Open Frame - 100 Watt - Single & Multiple Output :: HMI100 Series

Very Compact, 100W, 4.5` x 2.5` x 1.2` PCB Format CE Marked Power Supply, designed to meet EN60601-1 / UL2601-1

100W Max Output Power.
Single Output 3.3VDC - 48VDC
Dual / Triple and Quad Output models.
Meet UL 2601/1 & EN60601-1
EMI EN55011 & FCC Class B

 Click to Download Datasheet

:: 4 x O/P 1 U 19` Rack Medical PSU :: PDS7029

A custom PSU designed for use in Medical Applications but not certified to as a finished product but consists of 4 seperate Medically Approved PSU`s

19` Rack 1U Black Case & lid
4 x Medically Approved 12VDC at 5A PSU
2 off Rear fan units c/w suitable finger guards
1 off IEC 10A Switched, illuminated & Fused Input connector
4 off 20x5mm Fuse protection on each output (front mounted)
4 off 10A 2 pole 5.08mm pitch Output connectors (rear mounted)
4 off Green LED/Lamp Output OK indicators


:: 400Watt Single O/P Medical Psu :: RL0402

Medical Approved 400Watt U Channel Power Supply to UL 60601-3-2 Class D

Single Outputs available in 3V, 5V, 12V, 18, 24,36, 48V
EN60601 & Ul 60601-3-2


 Click to Download Datasheet

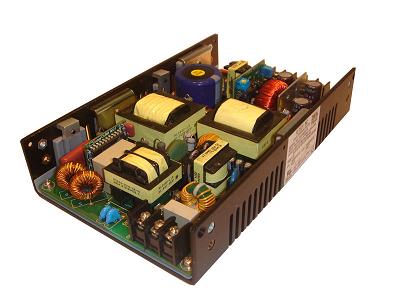

:: 240Watt Single O/P Medical Psu :: RL0402 U

Medical Approved 250Watt U Channel Power Supply to UL 60601-3-2 Class D

Single Outputs available in 3V, 5V, 12V, 18, 24,36, 48V
EN60601 & Ul 60601-3-2



 Click to Download Datasheet
