:: Explosion Proof UPS
We are please to be able to offer this Explosion Proof UPS used within Zone 1 and Zone 2, used within safety critical applications where harsh enviromental conditions can be expected.
- :: PDSiUPS200 Zone 2 :: 70W / 120 Minute Explosion Proof UPS
- Single unit Price: £2,080.00
![](db/images/iups_01_280.jpg)
- The iUPS 200 Zone 2 UPS Enclosure is certified for use in Zone 2 hazardous areas and provides back up power for up to 120 minutes, at 70W full load.
ATEX II 3 G Ex nA II T4 (-20oC≤Ta≤+55oC)
IP66
-20ºC to 55ºC
- The PDSiUPS200 is designed to be either wall or pole mounted, is IP66 rated and made of 316L stainless steel making the rugged enclosure suitable for installation in potentially explosive, harsh, wet and corrosive environments.
With its advanced battery charge controls, including built in temperature compensation feedback, the uninterruptible power supply system ensures the internal lead acid battery is receiving the correct charge.
Other features available include UPS status indication via enclosure mounted lamps, power output disable via an enclosure mounted button, active logic outputs for connection to a DCS or other equipment plus the option of plug and socket cable entry instead of cable glands.
Mounting solutions and brackets are available on request.
Click to Download Datasheet

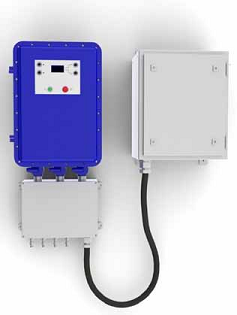

- :: PDSiUPS101 Zone 1 :: 3KVA / 35 Minute Explosion Proof UPS
- Single unit Price: £13,245.00
![](db/images/PDSiUPS101 (s).bmp)
- The PDSiUPS101 Uninterruptible Power Supply system is certified for use in Zone 1 hazardous areas and provides back up 230VAC power for up to 35 minutes, at 3KVA full load.
ATEX II 2 GD Ex d IIB + H2 T4
IP65/66
-20ºC to 30ºC at full load
- This unit has a modular design which allows battery pack to be integrated to double time to a maximum of 70Minutes with a 3KVA load. Also allow a complete additional PDSiUPS101 to be attached to create a system that can deliver 6KVA for 70 Minutes at 25 Deg C.
Click to Download Datasheet

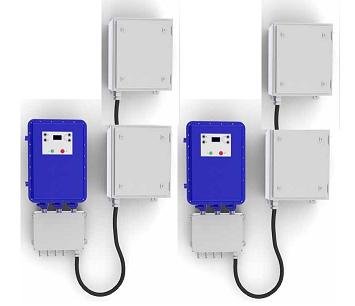

- :: PDSiUPS101 Zone 1 x 2 :: 6KVA / 70 Minute Explosion Proof UPS
- Single unit Price: £33,855.00
![](db/images/PDSi101 7Kva - 60 Miuntes (s).jpg)
- The PDSiUPS101 Uninterruptible Power Supply system is certified for use in Zone 1 hazardous areas and provides back up 230VAC power for up to 70 minutes, at 6KVA full load.
ATEX II 2 GD Ex d IIB + H2 T4
IP65/66
-20ºC to 30ºC at full load
- This unit has a modular design which allows battery pack to be integrated to double time to allow a complete additional PDSiUPS101 to be attached to create a system that can deliver 6KVA for 70 Minutes at 25 Deg C.
Click to Download Datasheet
