:: ETSI / 19` Telecom Inverter
These ETSI / 19" rack mounting Telecom Inverters offer power solutions for the telecom, networking, wireless and industrial markets. Using the Exchange DC Voltage ie 24VDC or 48VDC these inverters distribute mains 230Vac (or 115Vac) via UK 13A sockets, Shuko European mains sockets or any other mains socket so as to power auxillary equipment, requiring a low power source AC source.

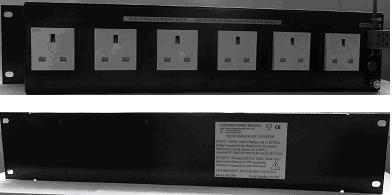

- :: 180Watt Telecom Inverters :: SM5296
![](db/images/ETSI Inverter.jpg)
- ETSI inverter is ideal when a low power source of AC mains is often needed for several items of auxiliary equipment.
- Ideal for Telecoms Exchanges, where the main power source is nominally 24VDC or 48VDC. These inverters convert this DC voltage into normal 230VAC 50Hz mains.
Six standard sockets are provided, each rated for continuous use at 30W maximum. Short term, up to 100W may be taken from any one socket providing total power taken from all sockets does not exceed 200W. Maximum allowable live to neutral capacitance is 0.68uF per socket. To conform to normal UK wiring, the output sockets neutral and earth pins are connected to chassis ground.
Though conforming to standard rack sizes, the units are typically mounted on the rear frame of the rack at a level allowing access to main equipment. Note that the sockets are on the rear (inside) face of the unit. The units are just 82 mm deep, plus 9 mm for connectors.
These units are designed to be permanently installed with direct connection to the battery via a circuit breaker. The unit does not have its own on/off switch. Fixing is by standard rack methods.
